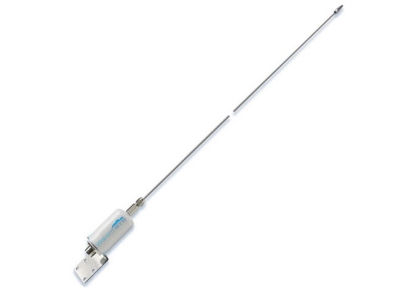

Vesper Marine AIS antenna designed to be shared with VHF radios

Product description:

Finally an antenna designed for both VHF and AIS!

Need more information about this product?

Manufacturer Part # Model # Price Qty
Vesper Marine VM-VA159 VA159 $179.00 AUD Add to Cart

Extended Description

This antenna is specially designed by Vesper Marine to be used with our Antenna Splitter. Up until now you've had to choose an AIS-tuned antenna that is optimized for the AIS frequencies but has lower performance for your VHF radio. Or you could choose an antenna that is designed for VHF radio communications but isn't optimal for AIS. Either of those works but we've got a better solution.

We've created an antenna that solves this dilemma. It has two key features that combine to make it ideal for use with our antenna splitter:

Wide bandwidth of 6 MHz means it will cover 3 MHz above and below the center point
159 MHz center frequency gives excellent performance for VHF radio (156 Mhz) and AIS (162 MHz)
The result is an antenna with superior performance over other designs. It has less than 1.5:1 VSWR at 156 MHz all the way up to 162 MHz. With other VHF or AIS antennas you'll only get low VSWR at one end of the frequency band but not both.

We've put all of this into the same physical package as our most popular antenna. It's perfect for installations where the lowest possible windage is a requirement. A detachable cable makes installation and maintenance easier and allows for any length cable to be used. It easily mounts on a mast but is also suitable for mounting most anywhere with it's included L-bracket. Example mounting locations from our customers are along side solar panels, bimini sides, on an arch, above a radar, or along the edge of a cabin top. The L-bracket can be removed allowing for even greater mounting flexibility.

Key features:
Specially designed 1.0m stainless steel antenna
Easily replaceable stainless steel whip if it gets lost or damaged
Optimized for sharing between VHF radio and AIS transponder
Includes SO239 socket & mounting bracket
Perfect for masthead or installations where the L-bracket suits
Easily adapted to most any installation configuration
Detachable cable allows for any length to be used
